MEIKAI noI CAMERA SECOND VERSION WITH REWIND KNOB

MEIKAI No I CAMERA SECOND VERSION.
Manufacturer: Tougo-Do Optical
Togodo optical co.ltd
Togodo sangyo ltd.
Dates: +/- 1939

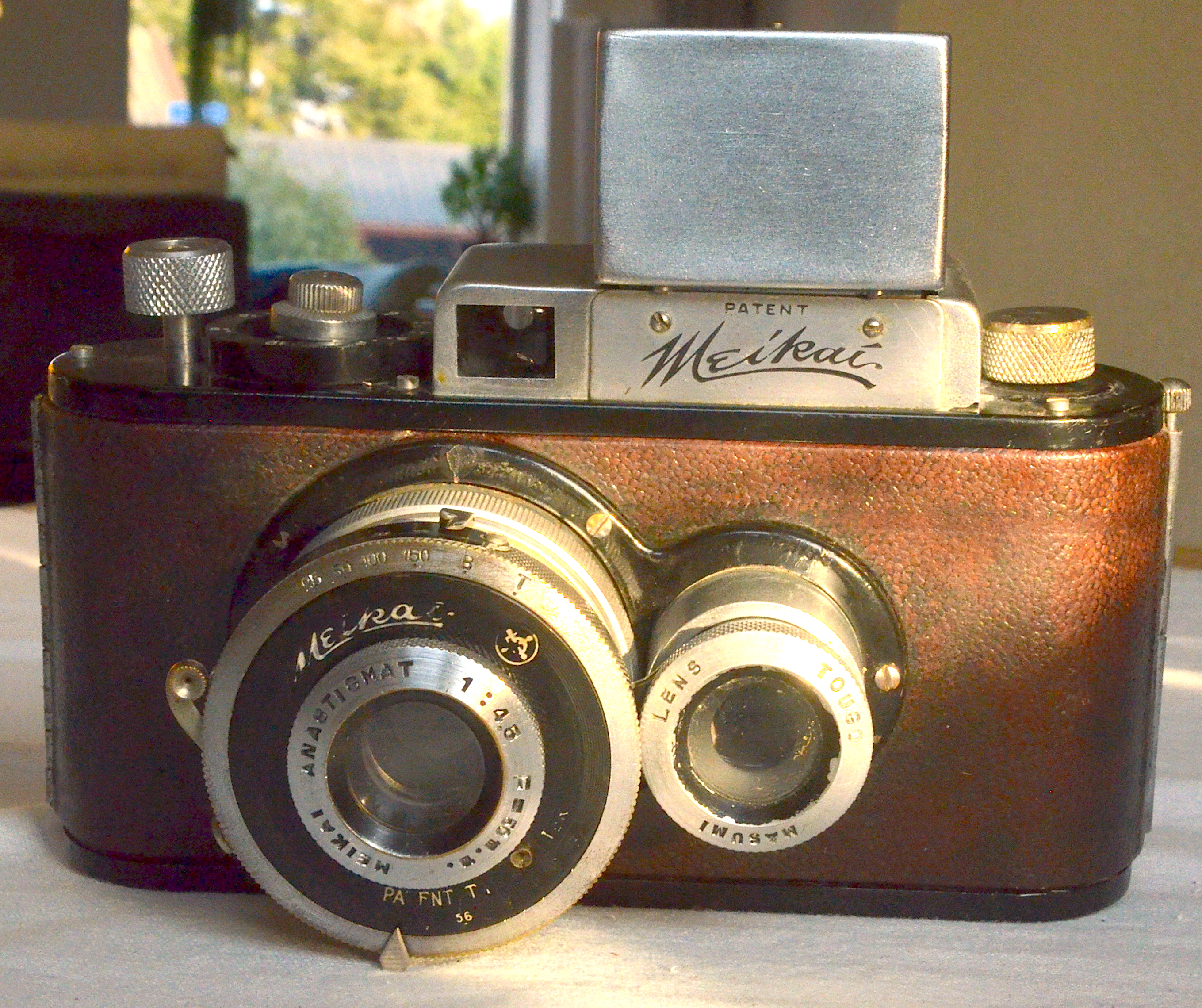

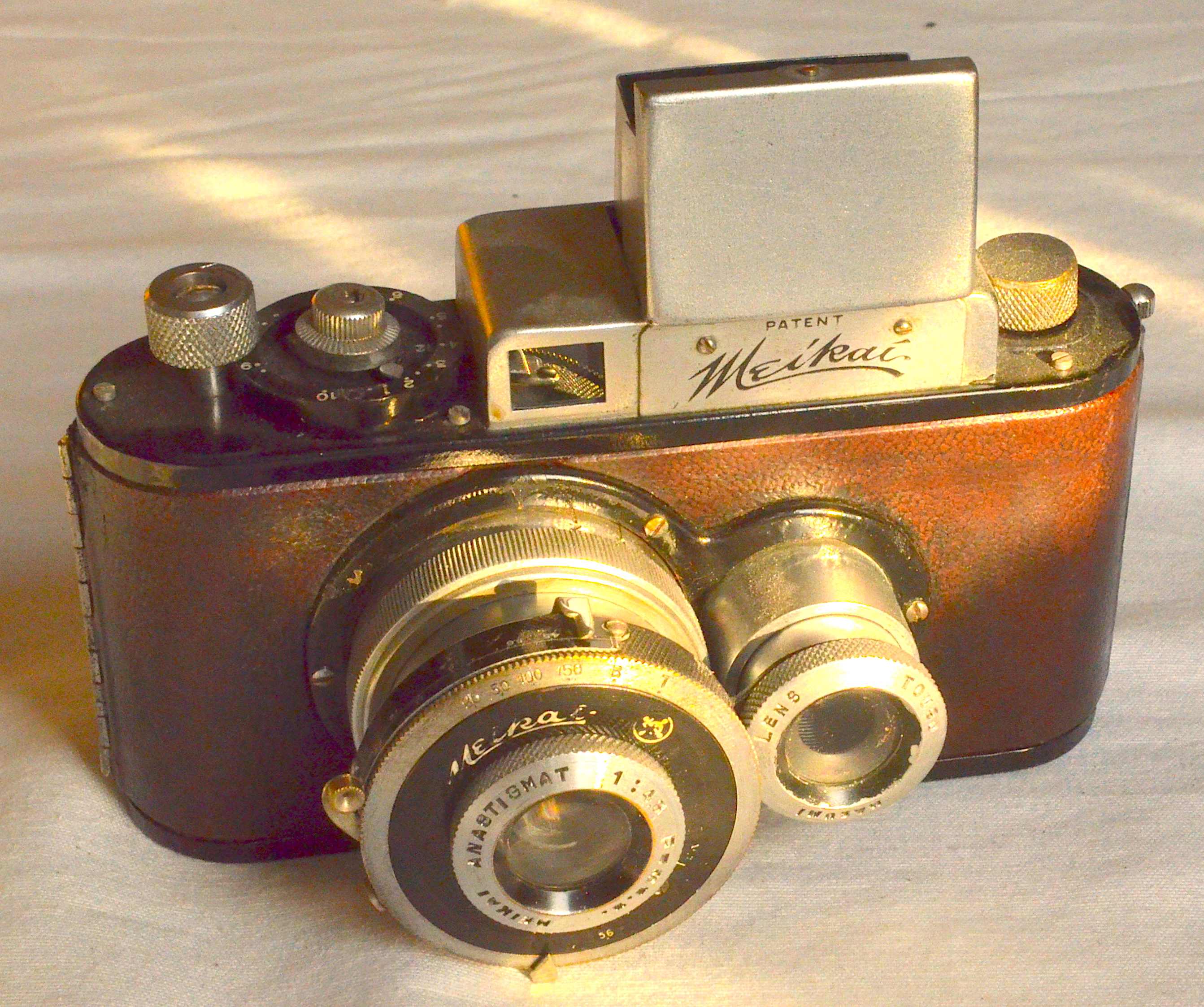

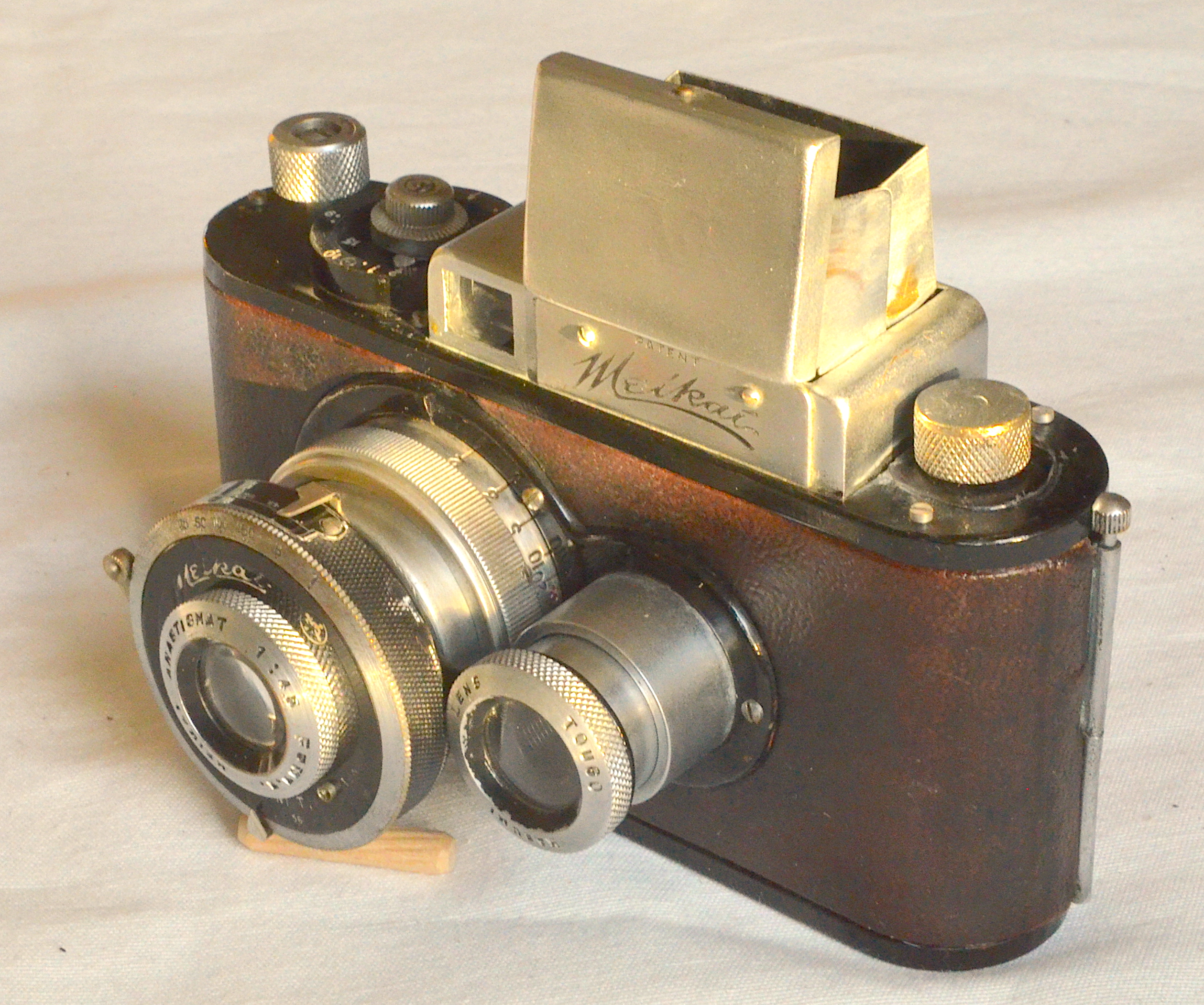

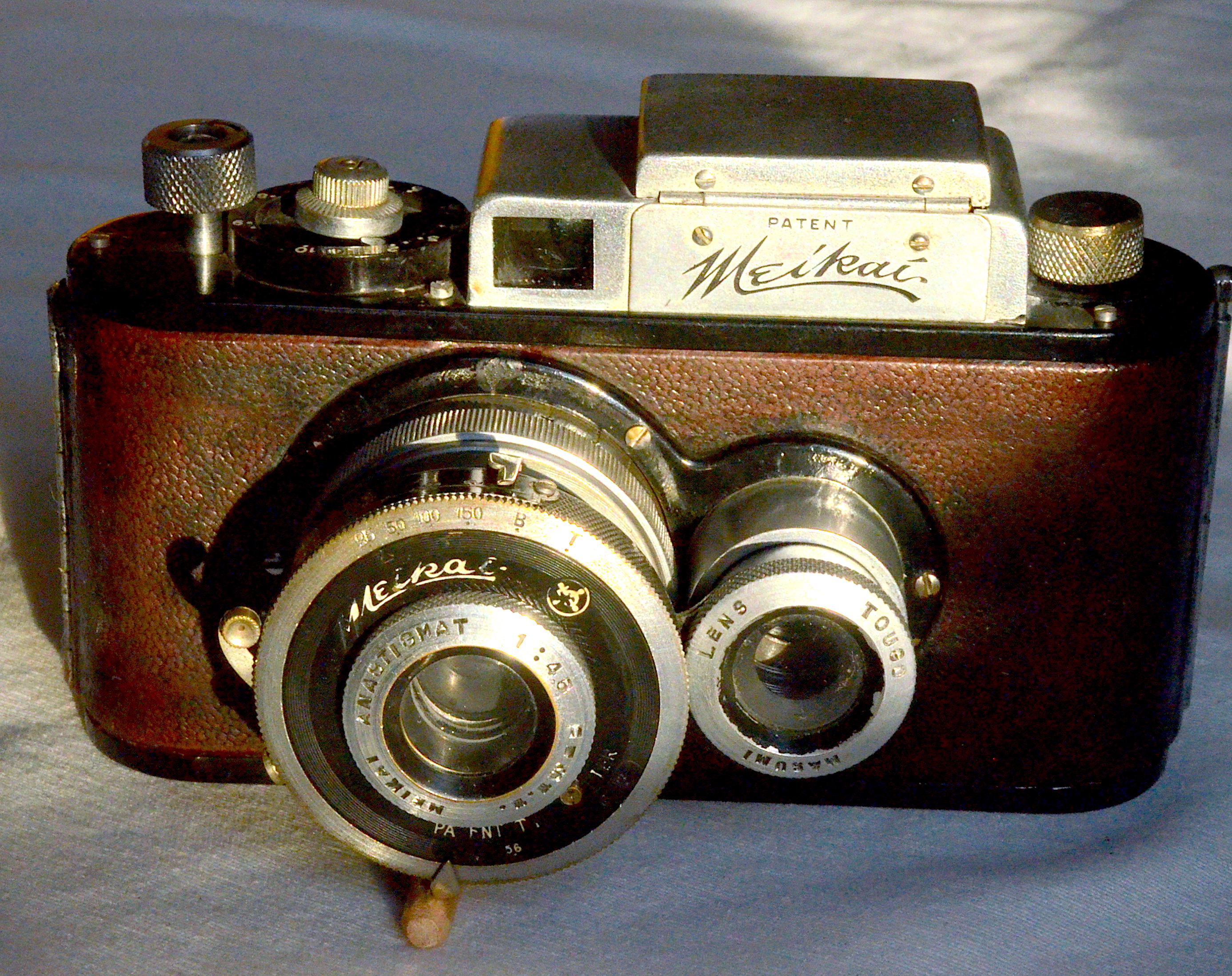

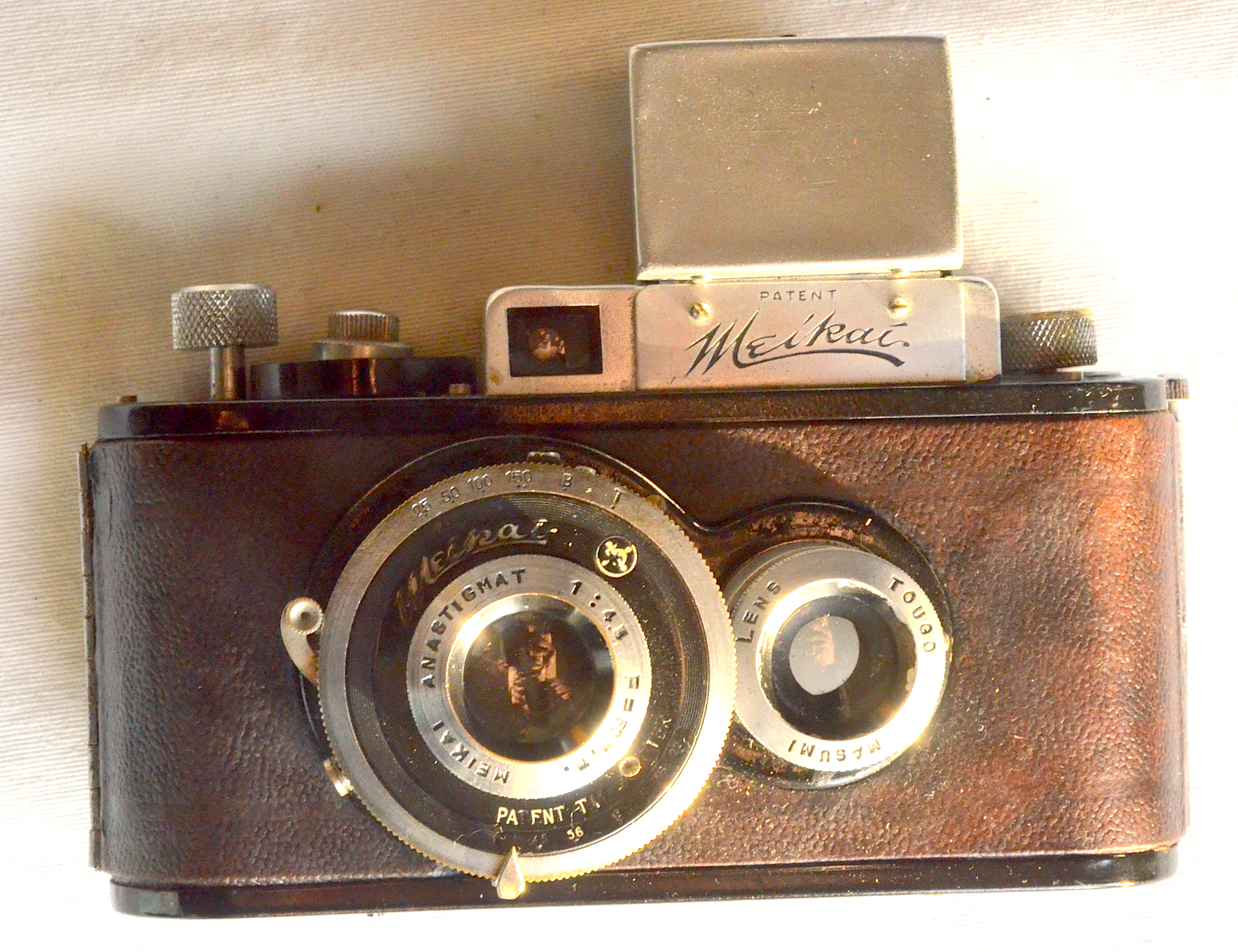

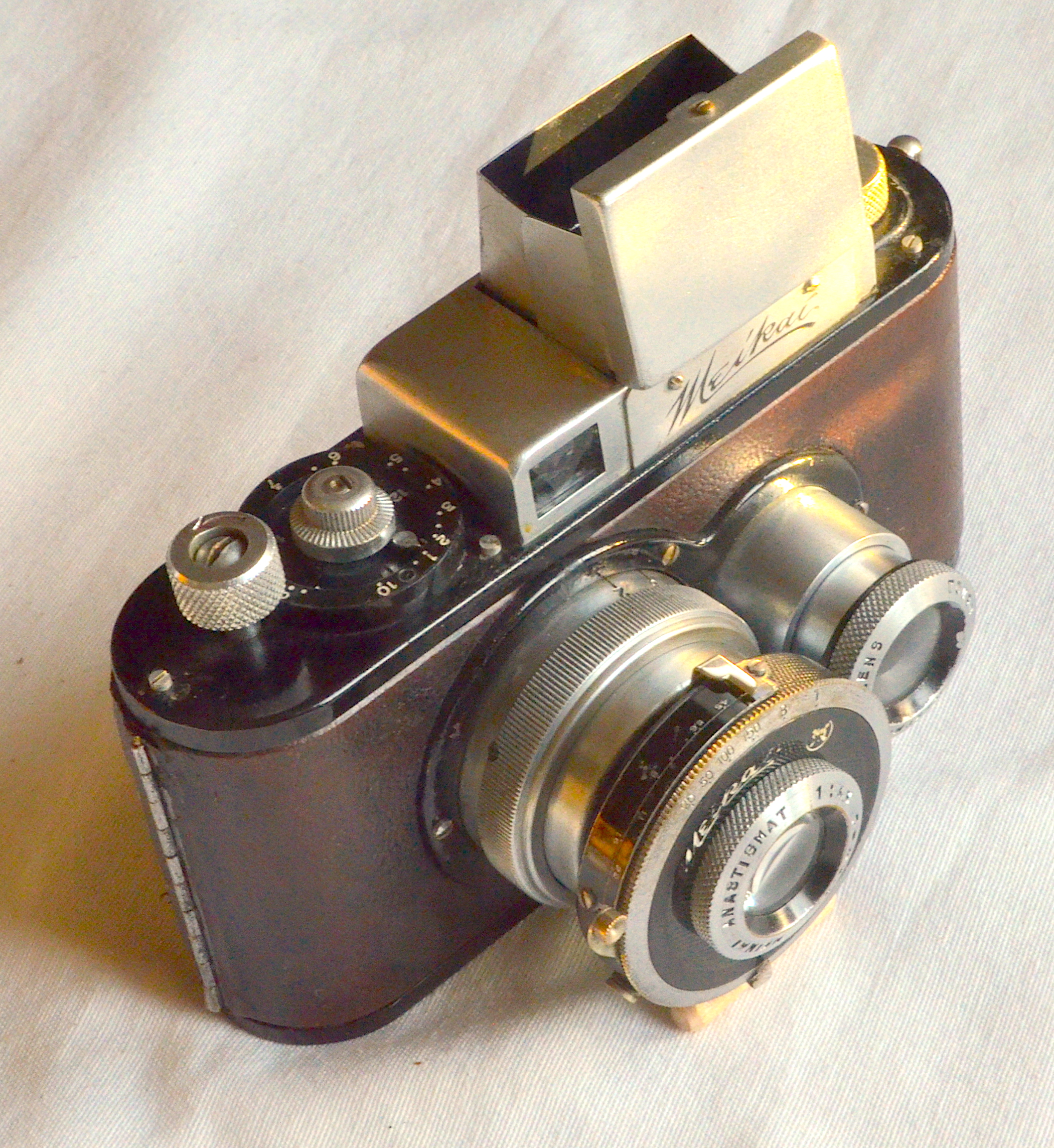

Side by side twin lens reflex for 16 3x4cm exposures per roll on 35 unperforated film.
Lens: Meikai Anastigmat 1: 4,5   f= 50mm.
The lens has a helical unit focusing down to 2 Feet.
Viewing len: Tougo Masumi Lens.
Shutter: Patent MT Shutter T , B 1/25-1/150sec.

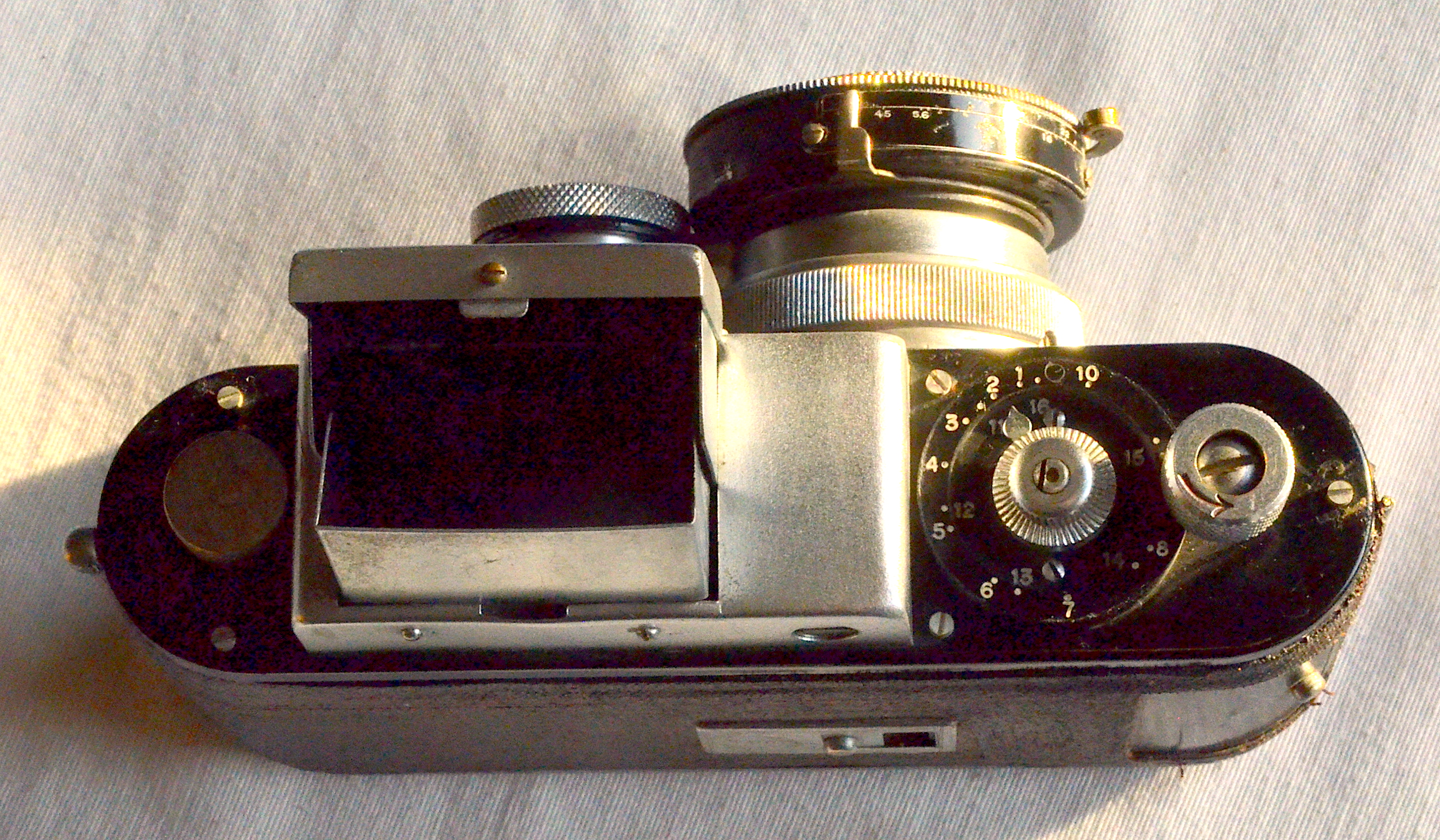

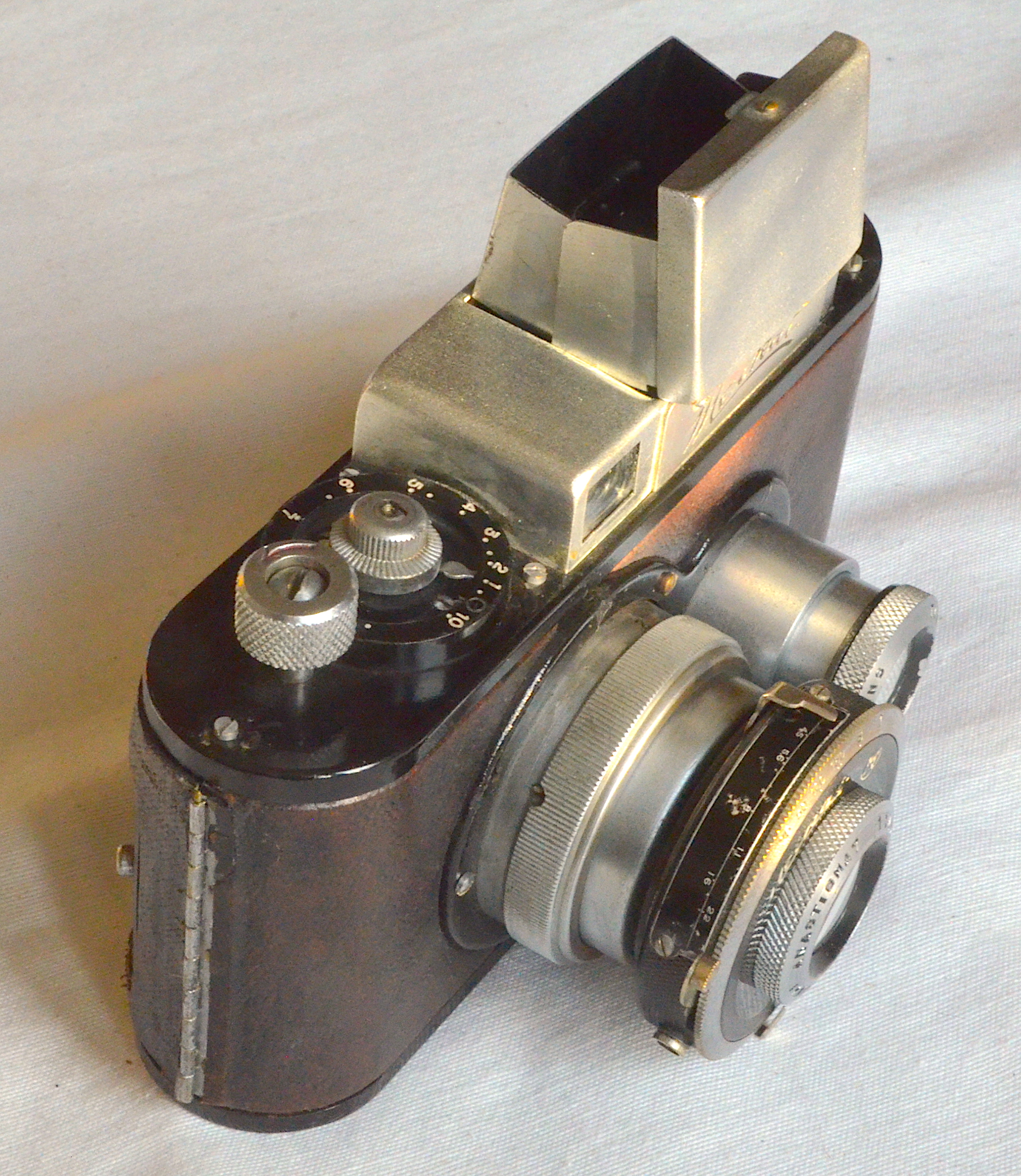

On the top plate left is arewind knob.
At the right side there is a frame counter (counts to sixteen in two counters).
This counter is at a superstucture that is put on the top plate of the camera.

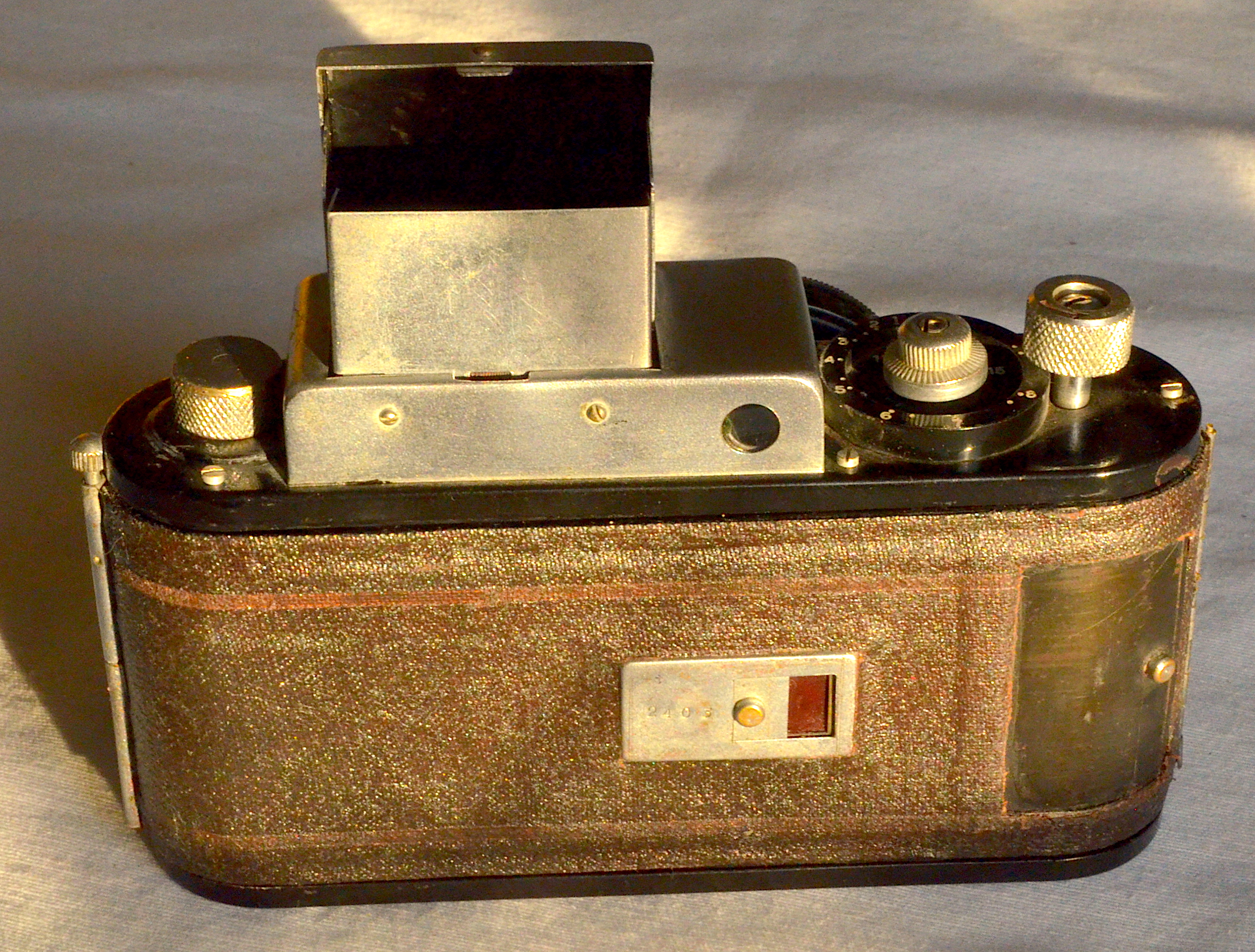

At the back there is a red window with a slide cover.
On the cover is a serial? Number, this camera 2403.

Meikai No 1 9 Meikai No 1 8 Meikai No 1 7 Meikai No 1 6 Meikai No 1 5 Meikai No 1 4 Meikai No 1 3 Meikai No 1 2 Meikai No 1 1
